Boyles Law is one of the fundamental gas laws that explain the relationship between pressure and volume in a confined gas system. First introduced in the 17th century by Robert Boyle, this scientific principle has remained a cornerstone in physics and chemistry for understanding gas behavior. Whether it’s understanding scuba diving dynamics or the function of a syringe, Boyle’s Law plays an essential role in both theory and practice.
Boyle’s Law in detail—covering its definition, formula, graphical representation, derivation, and real-world applications. This guide is ideal for students, educators, and enthusiasts seeking a comprehensive understanding of gas laws.
Table of Contents
What is Boyle’s Law?

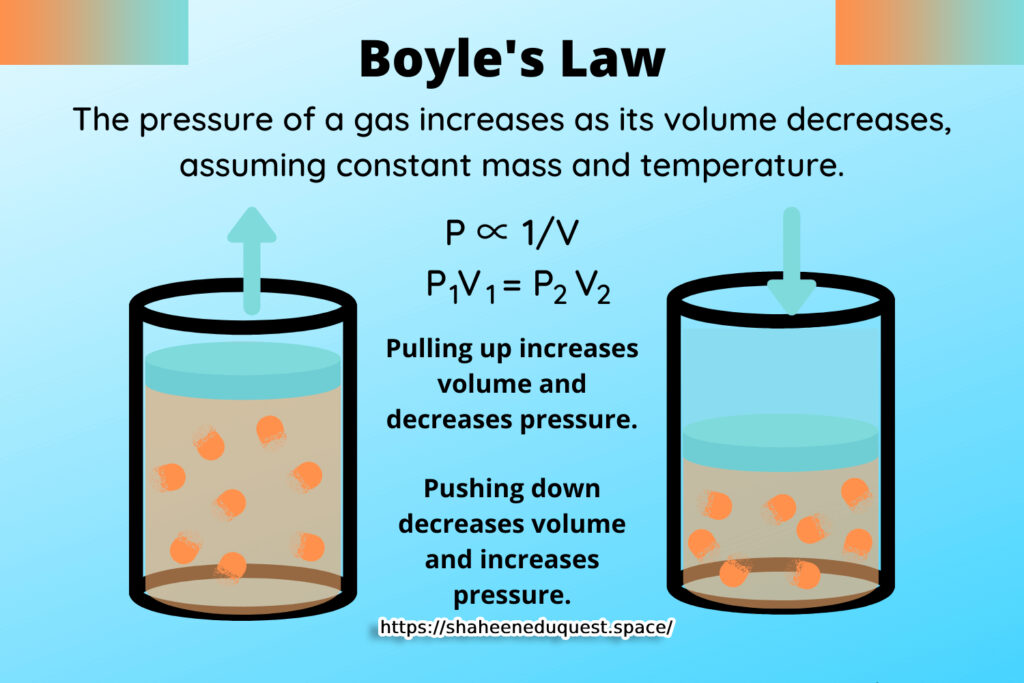

Boyle’s Law states that the pressure of a given mass of gas is inversely proportional to its volume, provided the temperature remains constant.
Mathematical Expression:
P∝1VP \propto \frac{1}{V}P∝V1
Or, PV=kPV = kPV=k
Where:
- PPP = Pressure of the gas
- VVV = Volume of the gas
- kkk = Constant (for a fixed amount of gas at constant temperature)
If a gas undergoes a change from one state to another: P1V1=P2V2P_1V_1 = P_2V_2P1V1=P2V2
This form is especially useful for problem-solving in practical scenarios.
Historical Background
Boyle’s Law is named after Robert Boyle, an Anglo-Irish natural philosopher, chemist, and physicist who published the relationship in 1662. With the help of his assistant, Robert Hooke, Boyle conducted experiments using a J-shaped glass tube to trap air and measure its pressure and volume under different weights. His experiments marked the beginning of quantitative gas laws in science.
Derivation of Boyle’s Law
Though originally derived from experiments, Boyle’s Law can also be conceptually derived from the Kinetic Molecular Theory of Gases.
According to this theory:
- Gases are made of molecules in random motion.
- Gas pressure results from collisions of molecules with the container walls.
- If volume decreases, the frequency of molecular collisions increases, hence pressure increases.
Thus, pressure is inversely related to volume when temperature and the number of particles remain unchanged.

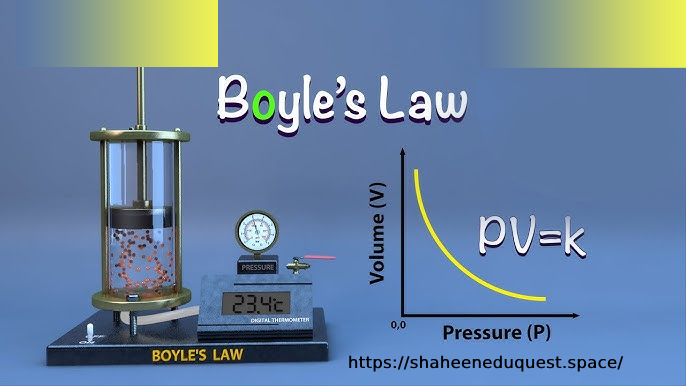

Graphical Representation of Boyle’s Law
1. P vs. V Curve (Isothermal Curve)
When pressure is plotted against volume, the result is a hyperbolic curve that slopes downward, indicating the inverse relationship.
- X-axis: Volume (V)
- Y-axis: Pressure (P)
The curve never touches the axes because neither pressure nor volume can be zero.
2. P vs. 1/V Curve
This graph is a straight line showing a direct proportionality between pressure and the reciprocal of volume.
SI Units Used in Boyle’s Law
| Quantity | Unit | Symbol |
|---|---|---|
| Pressure | Pascal | Pa |
| Volume | Cubic meter | m³ |
| Temperature | Kelvin | K |
Note: In many practical problems, pressure may also be measured in atm (atmospheres) or mmHg (millimeters of mercury), and volume in liters (L).
Real-World Applications of Boyle’s Law
1. Scuba Diving
Boyles Law explains why divers experience higher pressure as they descend. As pressure increases, the air volume in their lungs and tanks decreases. That’s why divers must ascend slowly—to allow gases in the body to expand gradually and avoid decompression sickness.
2. Syringes
When you pull back the plunger of a syringe, the volume inside increases, and the pressure decreases. This draws the liquid into the syringe due to the pressure difference, directly demonstrating Boyle’s Law.
3. Human Lungs
Breathing is a natural demonstration of Boyle’s Law. As your diaphragm contracts and the chest cavity expands, the pressure in your lungs drops, drawing in air. When you exhale, the volume decreases, increasing the pressure and pushing air out.
4. Bicycle Pumps
When using a bicycle pump, compressing the handle reduces the volume inside the pump chamber. This increases the air pressure, allowing it to fill the tire.
5. Aircraft Cabin Pressurization
At high altitudes, external air pressure is too low for human lungs to function properly. Aircraft use pressurization systems based on Boyles Law to maintain cabin air at a safe and breathable pressure.
Limitations of Boyles Law
While Boyles Law is highly useful, it comes with certain limitations:
- Temperature Must Be Constant: The law applies only under isothermal conditions.
- Ideal Gas Assumption: It assumes that the gas behaves ideally, which is not true at extremely high pressures or very low temperatures.
- Doesn’t Apply to Phase Changes: If a gas condenses into a liquid, the law is no longer valid.
Experimental Verification of Boyles Law
You can verify Boyle’s Law using simple lab equipment:
Apparatus:
- Boyles Law apparatus or J-tube
- Mercury or oil
- Ruler for measurement
- Pressure gauge
Procedure:
- Trap a known volume of gas in the tube.
- Increase the pressure gradually by adding mercury or weights.
- Measure the volume at each pressure increment.
- Plot the graph of P vs. V and verify the inverse relationship.
Sample Problem Using Boyles Law
Problem: A gas has a volume of 4.0 L at a pressure of 2.0 atm. What will its volume be if the pressure increases to 4.0 atm?
Solution:
Using the equation: P1V1=P2V2P_1V_1 = P_2V_2P1V1=P2V2 (2.0)(4.0)=(4.0)(V2)(2.0)(4.0) = (4.0)(V_2)(2.0)(4.0)=(4.0)(V2) 8.0=4.0V28.0 = 4.0V_28.0=4.0V2 V2=2.0 LV_2 = 2.0 \, LV2=2.0L
Answer: The volume will decrease to 2.0 L.
Conclusion
Boyles Law offers a foundational understanding of how gases behave under changing pressures. It is one of the simplest yet most powerful relationships in the study of gases, and its applications stretch across diverse fields—ranging from healthcare and aviation to industrial design.
By grasping the concepts of Boyle’s Law, one gains valuable insight into the behavior of gases in both theoretical and real-world contexts. For anyone pursuing a career in science, engineering, or medicine, Boyles Law is a fundamental principle worth mastering
