Learn the electronic configuration of electrons with simple rules like the Aufbau principle, Hund’s rule, Pauli exclusion, examples, exceptions, and importance in chemistry.
The arrangement of electrons in an atom is one of the foundational concepts in modern chemistry. Known as electronic configuration, this concept explains how electrons are distributed in the atomic orbitals of elements. Understanding electron configuration is essential for interpreting chemical behavior, bonding, and the periodic trends of elements.
In this article, we will explore the electronic configuration of electrons in detail, including definitions, principles, rules, notation, examples, exceptions, and its significance in chemistry.
Table of Contents
What is Electronic Configuration?
Electronic configuration refers to the specific distribution of electrons among the orbitals of an atom or ion. These orbitals are arranged in different energy levels (shells) and sublevels (subshells). Hund’s rule
In simpler terms, electronic configuration is a description of where the electrons are located around the nucleus of an atom. This configuration helps predict the atom’s chemical properties and how it will react with other atoms.
Structure of an Atom: A Quick Recap
Before diving into electronic configuration, let’s review the basic structure of an atom:
- Nucleus: Contains protons (positive charge) and neutrons (neutral charge).
- Electrons: Negatively charged particles that orbit around the nucleus in specific energy levels.
Electrons are organized in shells designated by principal quantum numbers (n = 1, 2, 3, …). Each shell contains sublevels: s, p, d, and f.
Types of Orbitals and Their Capacities
| Sublevel | Number of Orbitals | Maximum Electrons |
|---|---|---|
| s | 1 | 2 |
| p | 3 | 6 |
| d | 5 | 10 |
| f | 7 | 14 |
Rules Governing Electronic Configuration
There are several key rules and principles that govern how electrons are distributed in an atom:
1. Aufbau Principle (Building-Up Principle)

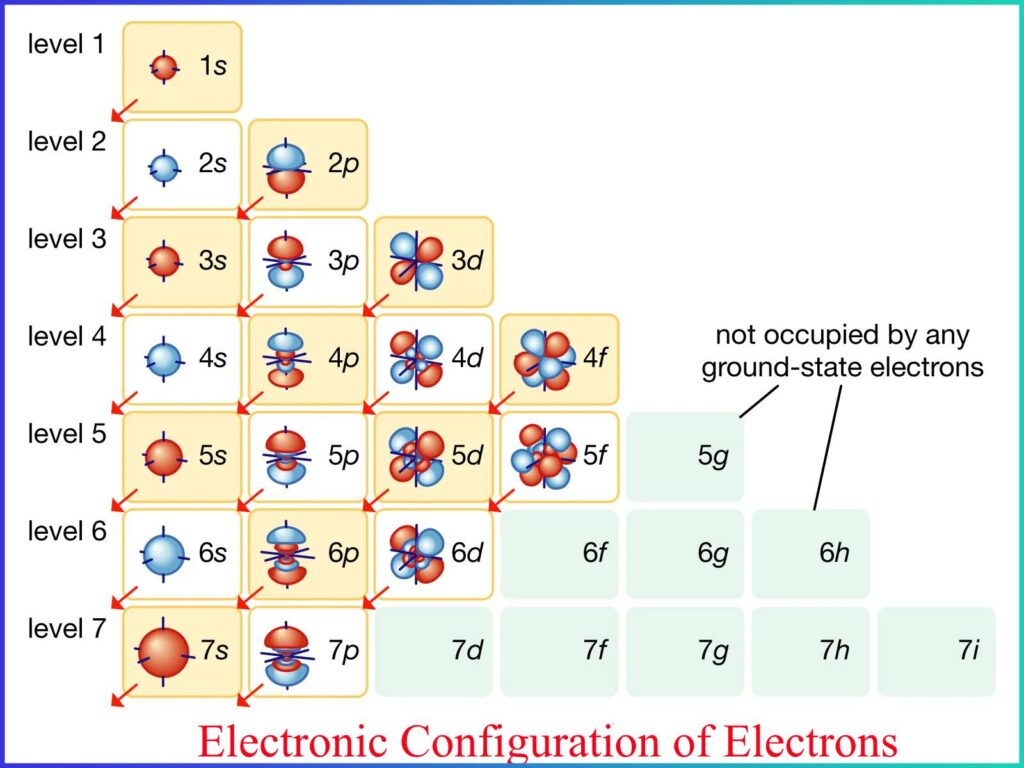

Electrons occupy orbitals in order of increasing energy, starting from the lowest available energy level. The general sequence is:
CopyEdit1s < 2s < 2p < 3s < 3p < 4s < 3d < 4p < 5s < 4d < 5p < 6s < 4f < 5d < 6p < 7s < 5f < 6d < 7p
2. Pauli Exclusion Principle
No two electrons in the same atom can have identical sets of four quantum numbers. In practical terms, each orbital can hold a maximum of two electrons with opposite spins.
3. Hund’s Rule of Maximum Multiplicity
When electrons occupy orbitals of the same energy (degenerate orbitals), they enter unpaired as far as possible. This minimizes electron-electron repulsion and stabilizes the atom.
Quantum Numbers and Their Role
To determine electron configuration, understanding quantum numbers is crucial. They define the properties of the electron’s orbital:
| Quantum Number | Symbol | Represents |
|---|---|---|
| Principal | n | Energy level (1, 2, 3, …) |
| Azimuthal | l | Sublevel (s=0, p=1, d=2, f=3) |
| Magnetic | m_l | Orbital orientation |
| Spin | m_s | Electron spin (+½ or –½) |
Notation of Electronic Configuration
Electronic configuration is written in a standard format, for example:
scssCopyEditCarbon (Z = 6): 1s² 2s² 2p²
Here, each segment tells:
- 1s²: “1” is the shell, “s” is the sublevel, and “²” indicates two electrons.
Alternatively, we use noble gas notation (shorthand):
makefileCopyEditCarbon: [He] 2s² 2p²
This represents the core electrons using the nearest noble gas symbol, followed by the valence configuration.

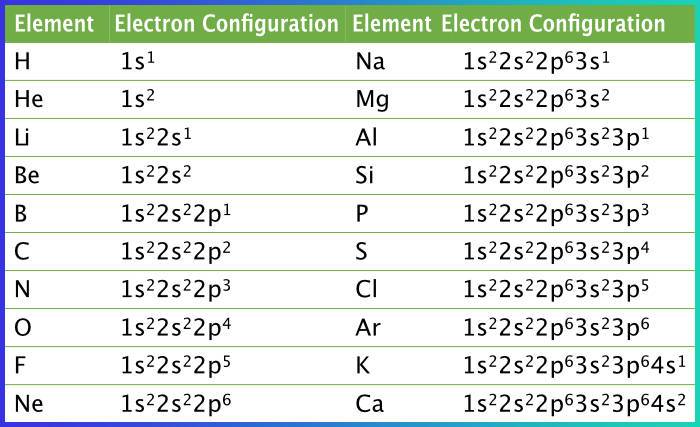

Examples of Electronic Configurations
Let’s take a look at the configurations of some common elements:
| Element | Atomic Number (Z) | Configuration |
|---|---|---|
| Hydrogen | 1 | 1s¹ |
| Helium | 2 | 1s² |
| Lithium | 3 | 1s² 2s¹ |
| Oxygen | 8 | 1s² 2s² 2p⁴ |
| Neon | 10 | 1s² 2s² 2p⁶ |
| Sodium | 11 | 1s² 2s² 2p⁶ 3s¹ |
| Calcium | 20 | 1s² 2s² 2p⁶ 3s² 3p⁶ 4s² |
| Iron | 26 | [Ar] 4s² 3d⁶ |
| Copper | 29 | [Ar] 4s¹ 3d¹⁰ (exception) |
| Zinc | 30 | [Ar] 4s² 3d¹⁰ |
Exceptions in Electron Configuration
Some elements have anomalous electron configurations due to enhanced stability of half-filled or fully filled sublevels.
Common Exceptions:
- Chromium (Z = 24):
- Expected: [Ar] 4s² 3d⁴
- Actual: [Ar] 4s¹ 3d⁵
- Copper (Z = 29):
- Expected: [Ar] 4s² 3d⁹
- Actual: [Ar] 4s¹ 3d¹⁰
Why?
Half-filled (d⁵) and fully filled (d¹⁰) d-orbitals offer extra stability due to symmetrical electron distribution and exchange energy.
Electronic Configuration of Ions
Ions have different electron configurations from neutral atoms. When electrons are lost or gained, the configuration adjusts accordingly.
Examples:
- Na (Z = 11): 1s² 2s² 2p⁶ 3s¹
Na⁺: 1s² 2s² 2p⁶ (loss of one 3s electron) - Cl (Z = 17): 1s² 2s² 2p⁶ 3s² 3p⁵
Cl⁻: 1s² 2s² 2p⁶ 3s² 3p⁶ (gain of one electron)
For transition metals, electrons are removed from the s orbital first:
- Fe (Z = 26): [Ar] 4s² 3d⁶
Fe²⁺: [Ar] 3d⁶ (4s electrons are lost first)
Importance of Electronic Configuration in Chemistry
Understanding electronic configurations is crucial for:
1. Periodic Table Structure
The periodic table is organized based on electron configurations. Groups and periods reflect similar valence electron patterns, which explain chemical reactivity.
2. Chemical Bonding
The type of bond (ionic, covalent, metallic) an atom forms depends on its valence electrons.
3. Magnetism
Atoms with unpaired electrons exhibit magnetic properties (paramagnetism), while those with all electrons paired are diamagnetic.
4. Spectral Lines
The transition of electrons between energy levels results in emission or absorption of light—key in spectroscopy.
5. Oxidation States
The electron configuration explains common oxidation states, especially in transition metals.
Periodic Trends Explained by Electron Configuration
- Atomic Radius: Decreases across a period due to increased nuclear charge pulling electrons closer.
- Ionization Energy: Increases across a period; electrons are harder to remove from smaller atoms.
- Electron Affinity: Generally becomes more negative across a period as atoms gain electrons more easily.
- Electronegativity: Increases across a period, decreases down a group.
Conclusion
The electronic configuration of electrons forms the backbone of atomic theory and modern chemistry. It explains the placement of elements in the periodic table, the nature of chemical bonds, and many physical and chemical properties of substances.
By understanding how electrons are arranged, students and scientists can predict reactions, design molecules, and develop new materials. From basic atoms to complex ions and molecules, electron configuration offers a powerful tool to decode the universe at the atomic level.
